Ipe gate modern - 4.0 x 4.0 double-sided

For example: Do you need a gate of 1.20 meters of with?
Choose the desired with of the gate, and press on the + for the quantity

You receive

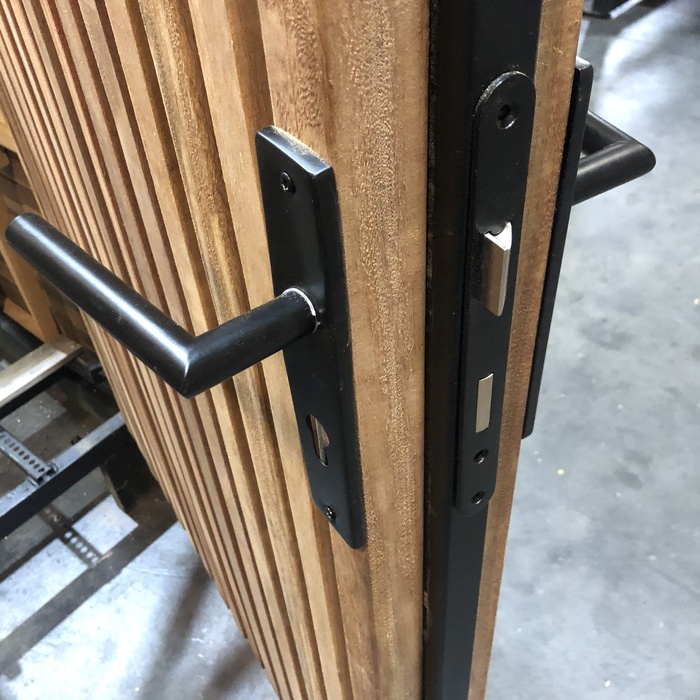

A steel gate frame, complete with black staves, black hooks, black cylinder lock and black door fitting.

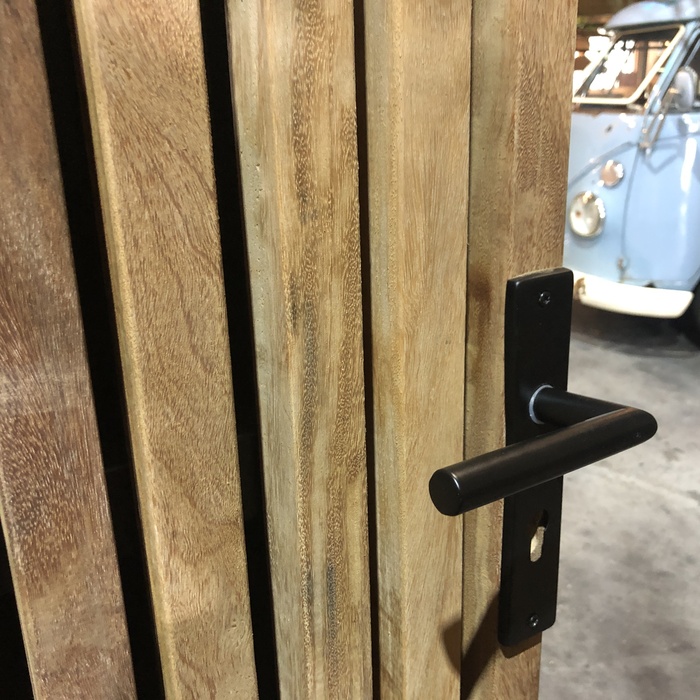

Enough hardwood beams in 4.0 x 4.0 cm length 2.10 m1 to cover the gate frame itself on 2 sides. The steel frame is 1.90 m1 high, so this is the minimum height of the gate. The beams are 2.10 m1 long, so this is also the maximum height of the gate. By sawing the beams shorter you can determine the total height of the gate. We supply enough screws to mount the bars. Use the supplied Epdm cloth to place it between the beams, so there is no see-through. Choose the desired width of your gate. Available in the sizes 1.00 - 1.20 and 1.50 m1 wide.

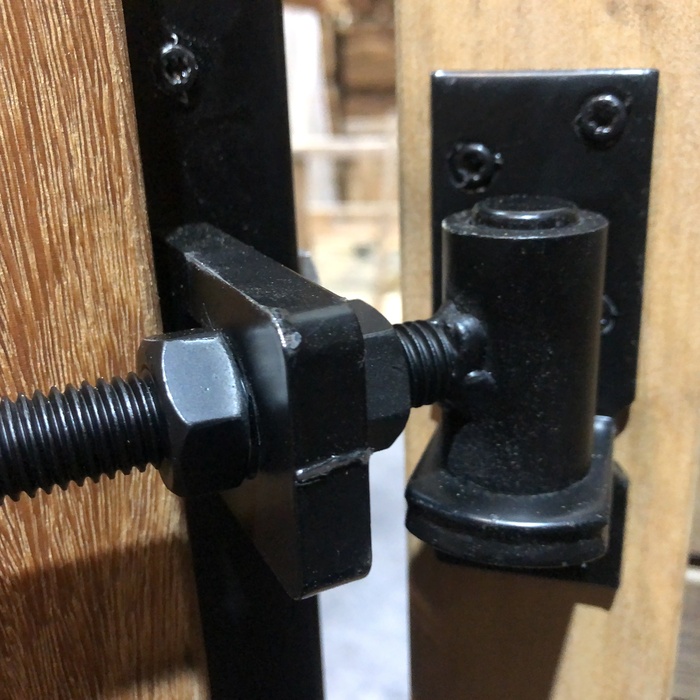

For a 1 m1 gate, the steel frame is 1 m1 wide. Added to this are the thumbs and hinges this is a minimum of 5 cm and a maximum of 10 cm. Total width is therefore at least 105 and to be adjusted at 110 cm.

For a 1.20 m1 and 1.50 cm gate this is also the case. The frame with plus the thumbs and hinges to be added to the width.

Do not forget to oil? Per 2,7 litre ipe fence oil, you can fully oil a gate 4 times. Repeat this process twice a year. This keeps the modern gate beautiful in the original wood colour, and the wood does not absorb any dirt or water. You also extend the life. If you do not oil the gate, it will gradually become mouse-grey after approximately 6 months. Once wood has turned grey it cannot be restored to its original colour.

Metal door frames
Our metal gate frames are much thicker and more elegant than the standard gate frames, as much as 3 cm thick and 1.90 m1 high. This means that we no longer need an optically disruptive steel cross in the frame. Always coated in matt black so they do not rust. Available in widths of 1.00 m1, 1.20 m1 or 1.50 m1. The height of the metal frames is always 1.90 m1, and you always receive slats in the length of 2.10 m1. This gives you the flexibility to keep the gate height at 2.10 m1 or to cut the lengths shorter. The lock case is concealed in the steel frame, this gate is much stronger and therefore less susceptible to burglary. The gate is always hung with 3 suspension points, again made of thick steel, and does not bend. The black staves and hooks are easy to adjust by turning the nuts in or out. Our gates do not work, so hang them up once and they are ready for use.

Wood to attach to the gate frame

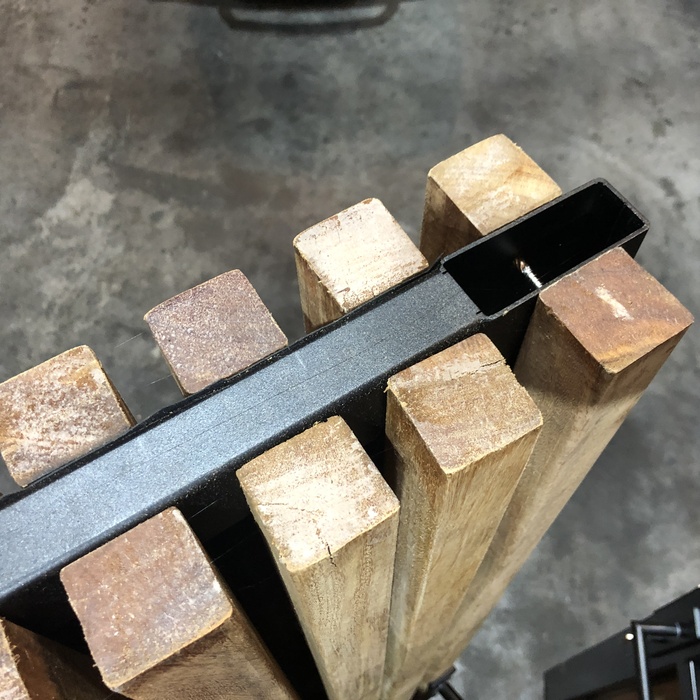

You screw the beams onto the frame. With 1 long screw, you screw through the beam, then through the metal frame and again into a beam. This way you mount 2 bars straight opposite each other on both sides of the frame with totally 3 screws. We recommend you to watch the video carefully, so you know exactly how to make a gate.

Processing
You should leave 2 cm space between the planks, this is what our wood delivery is based on. We supply enough hardwood slats to cover the gate frame on 2 sides. Ipe hardwood slats with the dimension 4.0 x 4.0 cm. Saw the hardwood slats to length yourself, because each gate is custom made. The modern gate is heavy in weight and quality. It can be mounted directly to a wall, or use a hardwood pole to mount the gate on. The minimum thickness for mounting a garden gate is a hardwood pole of 9.0 x 9.0 cm, with a length of 3.00 m1. A post must be buried in the ground for at least 1/3 of its length. Little do-it-you-self experience is required to assemble a gate.

Double gate?
If you would like to order a double gate, we recommend you send us an email. Every situation is different and therefore customised. Please note, we do not make gates in other widths than indicated in this product.
